Checkpoint
The CrowdSec Checkpoint integration connects CrowdSec's hosted blocklist endpoint to your Checkpoint firewall.
Check Point calls this feature Custom Intelligence (IoC) Feeds, which provide the ability to add custom cyber intelligence feeds into the Threat Prevention engine.
Ensure your Checkpoint device supports Custom Intelligence (IoC) Feeds.
The vendor documentation is available in the References section below.
Setup a Checkpoint Integration Endpoint
- 1- Create an integration
- 2- Remediation Component
- 3- Save your credentials
- 4- Subscribe to blocklists
Step 1 - Create an integration in the CrowdSec Console

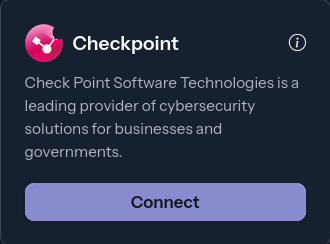

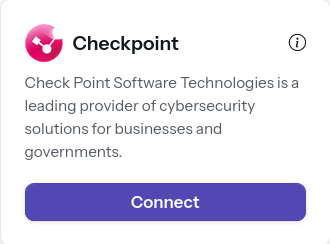

In your CrowdSec Console account, navigate to the Blocklist tab in the top menu bar, then select the Integrations sub-menu. Choose the integration type you need, then click Connect.
If you don't have a CrowdSec Console account, sign up here. On mobile, use the menu icon in the top-right corner, tap Blocklist, then Integrations.
Step 2 - Fill in integration details
Name the integration (must be unique to your account) Optionally, add a description and tags to help you identify it later. Then click Create.
Step 3 - Copy your credentials
The credentials shown next are displayed only once. Copy them before closing this screen. If you lose your credentials, you can regenerate them via Configure → Regenerate Credentials on the integration page.
With this HTTPS endpoint and Basic Auth credentials, you can verify the endpoint with any HTTP client, for example:
curl -u 'usr:pass' https://admin.api.crowdsec.net/v1/integrations/$integID/content
Step 4 - Subscribe to Blocklists
The integration endpoint will serve the deduplicated blocklists it's subscribed to. After creation, a subscription pop-up appears automatically. You can also access it later via the Add Blocklist button.
Select one or more blocklists available for your plan, then click Confirm Subscription. The blocklist name(s) will appear in the integration tile once subscribed.
Configure Checkpoint

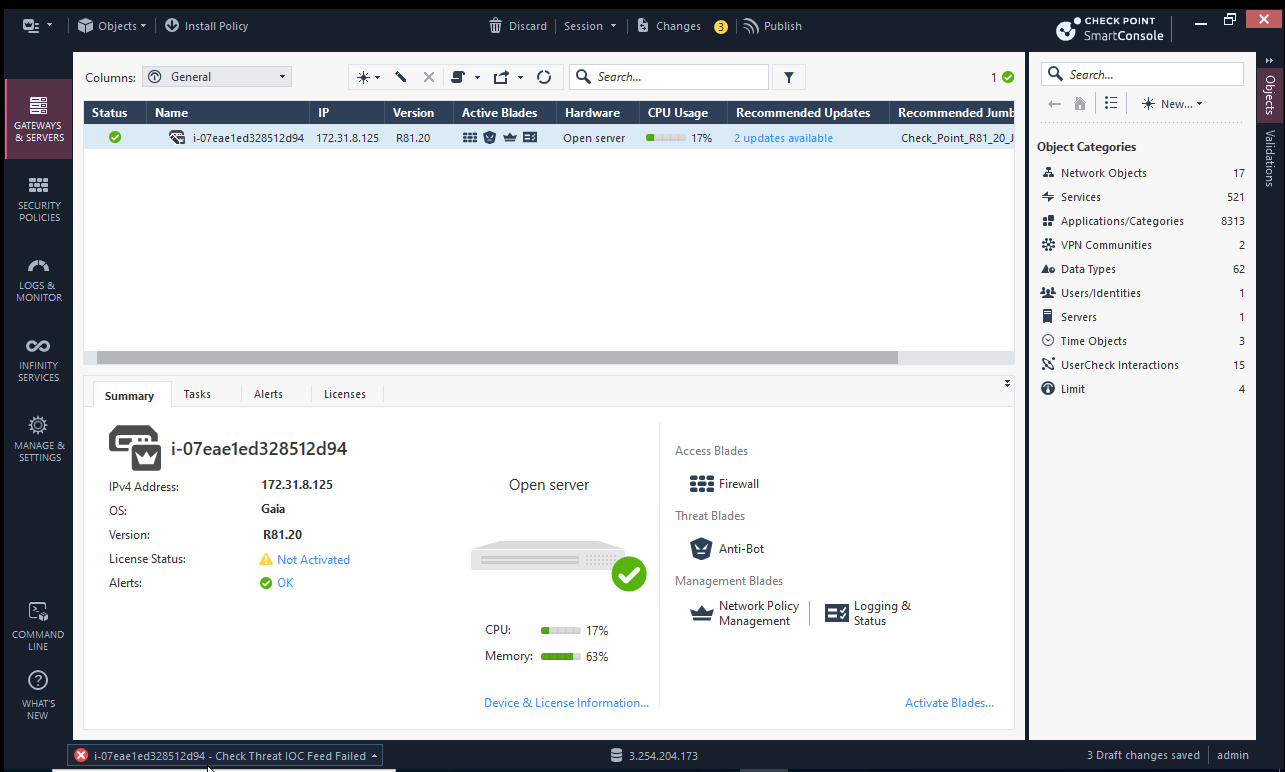

In the Gateways and Servers tab, double-click the gateway you want to configure.

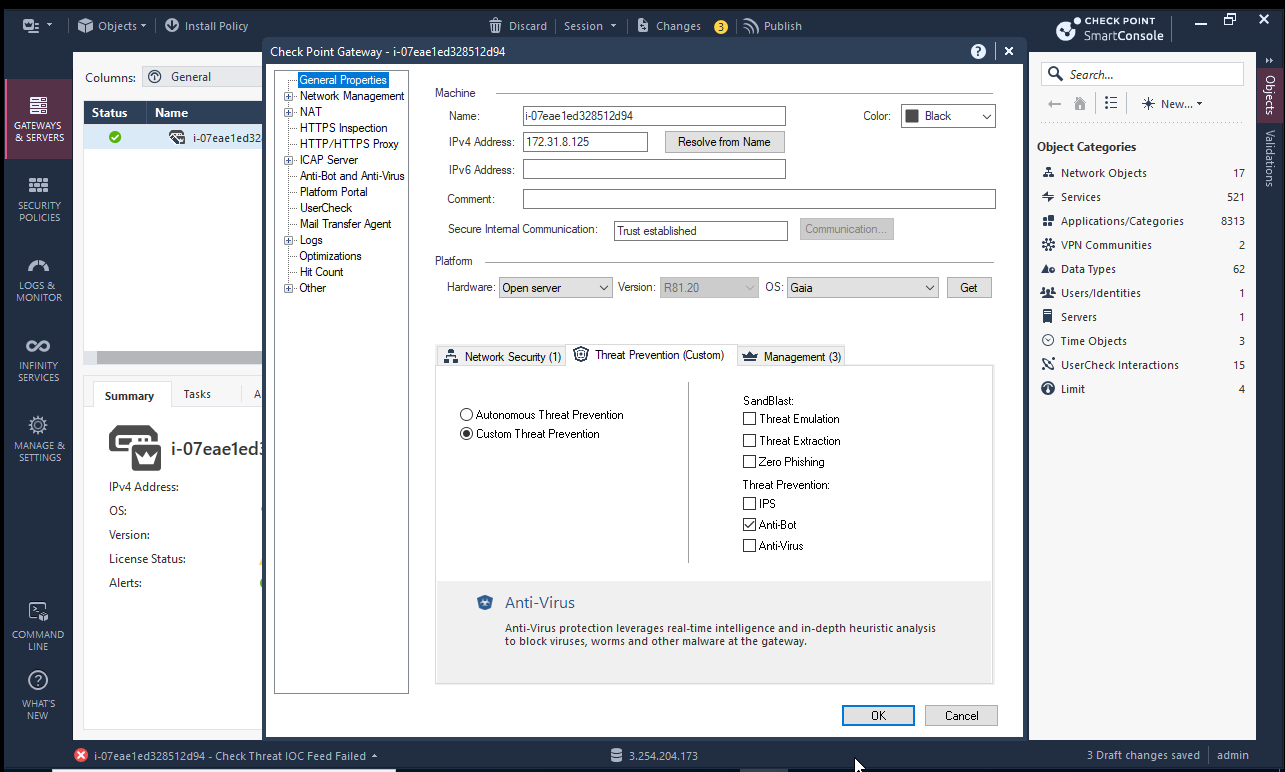

In the properties menu, select Threat Prevention (Custom), then activate at least Anti-Bot or Anti-Virus.

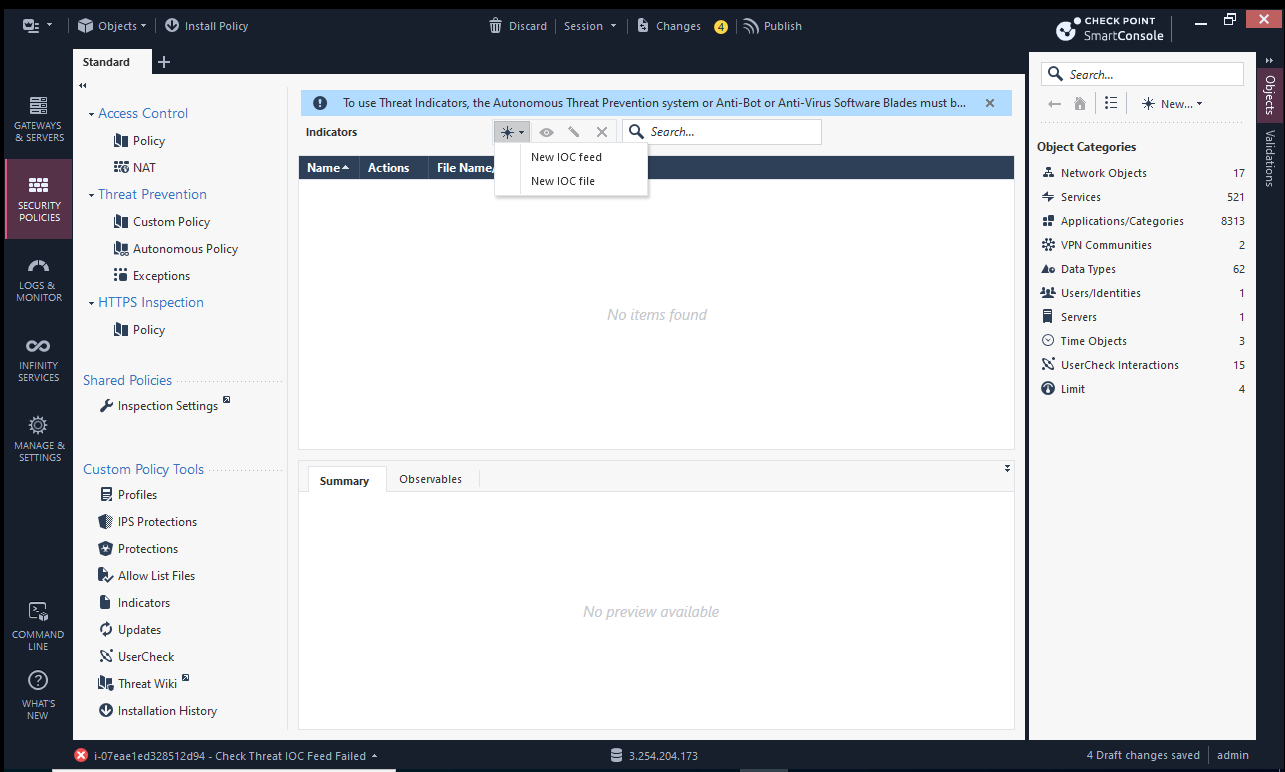

Go to the Security policies tab and click New IOC Feed.

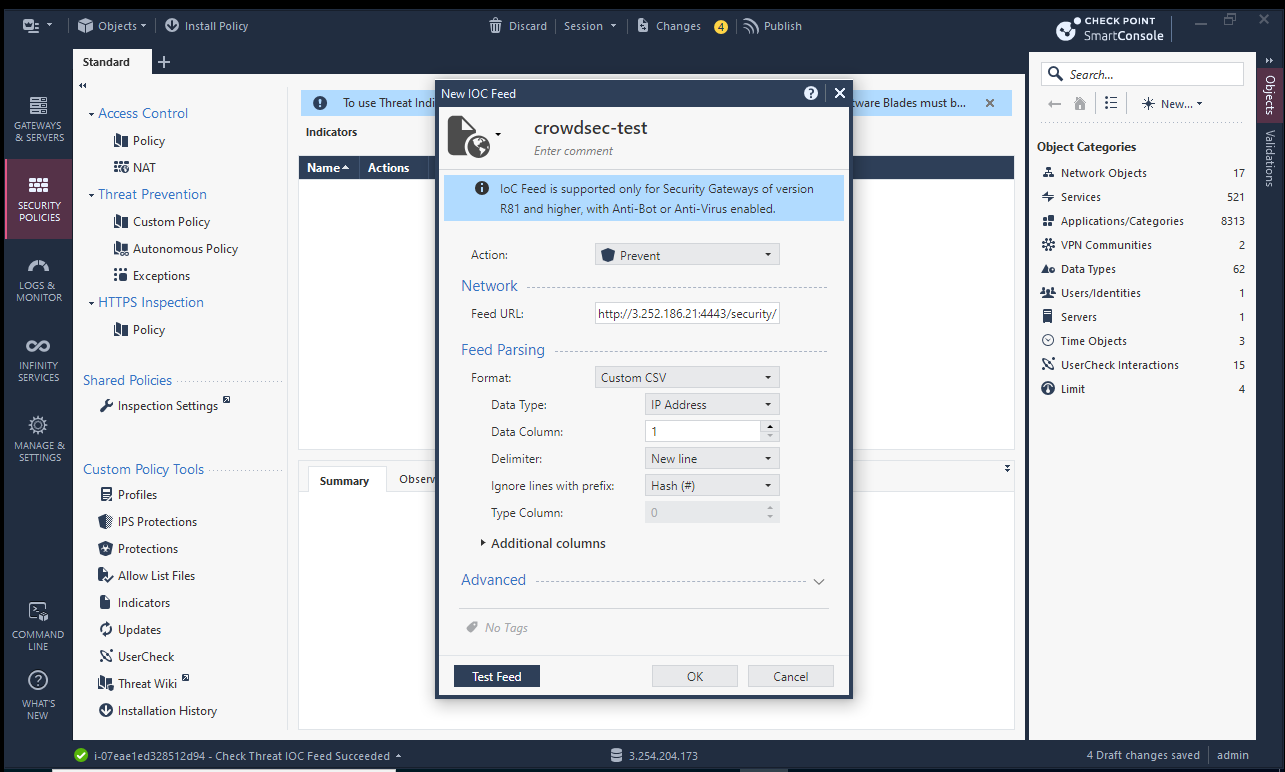

Click Custom Policy, then Indicators. Add your feed information using the endpoint URL with Basic Auth credentials embedded:
https://<username>:<password>@admin.api.crowdsec.net/v1/integrations/<integration_id>/content

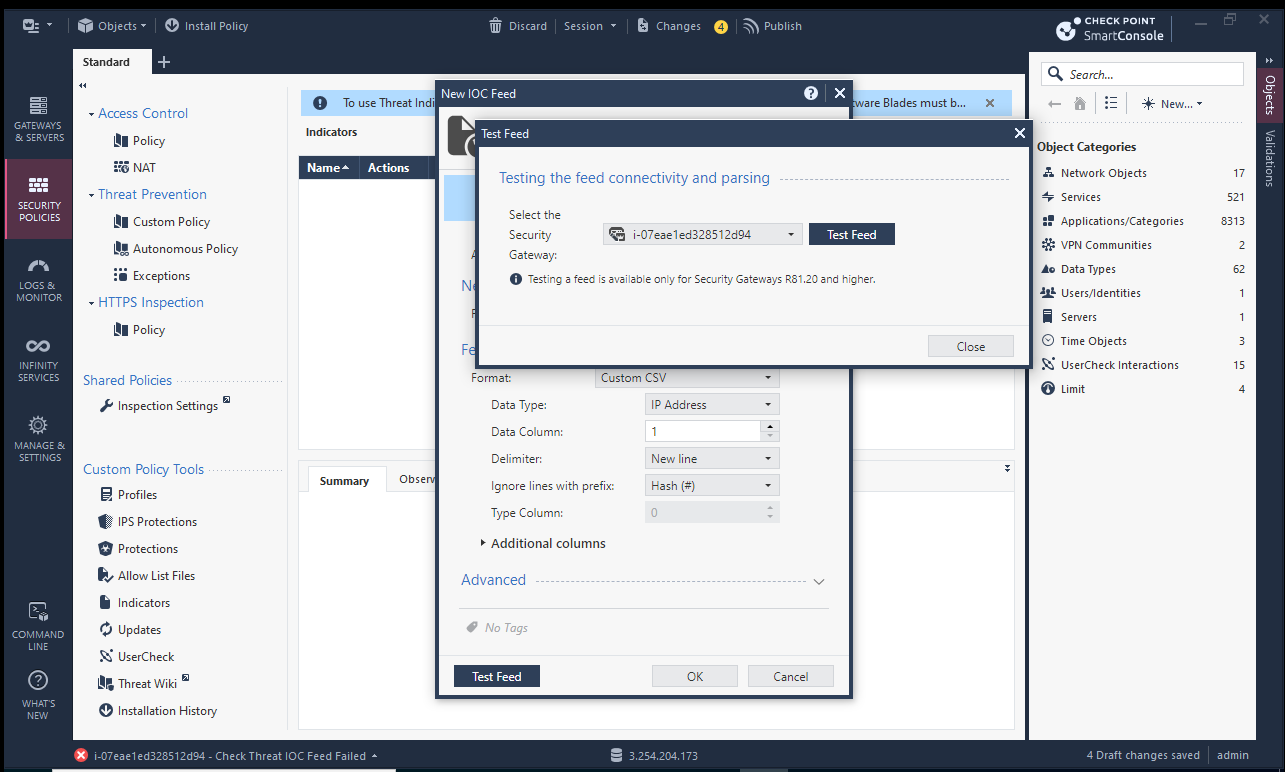

You can use the Raw IP List format and set the data column to 1. Click Test Feed.
Select the gateway and click Test Feed.

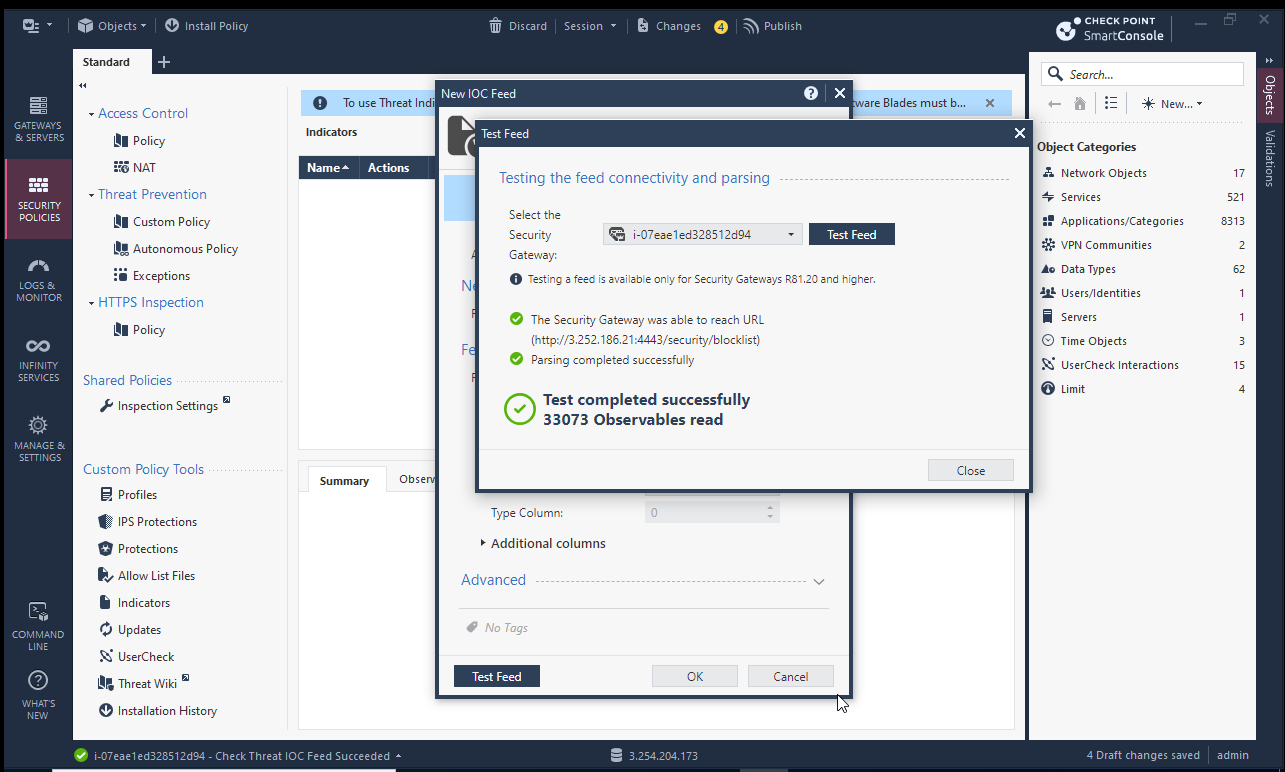

Verify the feed is working, then save the configuration.
Format example
The CrowdSec blocklist is served in Checkpoint format, with one entry per line:
Accessobserv2,192.168.38.187,IP,high,high,AB,C&C server IP
Accessobserv2,192.168.38.188,IP,high,high,AB,C&C server IP
Format: UNIQ-NAME, VALUE, TYPE, CONFIDENCE, SEVERITY, PRODUCT, COMMENT
Manage integration size limits with pagination
If you want to learn how to manage integration size limits with pagination, please refer to the Managing integrations size limits with pagination section.
References
Next Steps
Subscribe to blocklists in the Blocklist Catalog to populate your integration.
