Palo Alto
The CrowdSec Palo Alto integration connects CrowdSec's hosted blocklist endpoint to your Palo Alto firewall.
Palo Alto calls this feature External Dynamic Lists (EDL), which allow you to import and automatically update blocklists from external sources.
Ensure your Palo Alto device supports External Dynamic Lists (EDL).
The vendor documentation is available in the References section below.
Create a Palo Alto Integration Endpoint
- 1- Create an integration
- 2- Remediation Component
- 3- Save your credentials
- 4- Subscribe to blocklists
Step 1 - Create an integration in the CrowdSec Console

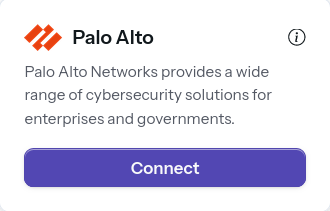

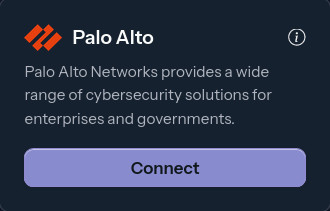

In your CrowdSec Console account, navigate to the Blocklist tab in the top menu bar, then select the Integrations sub-menu. Choose the integration type you need, then click Connect.
If you don't have a CrowdSec Console account, sign up here. On mobile, use the menu icon in the top-right corner, tap Blocklist, then Integrations.
Step 2 - Fill in integration details
Name the integration (must be unique to your account) Optionally, add a description and tags to help you identify it later. Then click Create.
Step 3 - Copy your credentials
The credentials shown next are displayed only once. Copy them before closing this screen. If you lose your credentials, you can regenerate them via Configure → Regenerate Credentials on the integration page.
With this HTTPS endpoint and Basic Auth credentials, you can verify the endpoint with any HTTP client, for example:
curl -u 'usr:pass' https://admin.api.crowdsec.net/v1/integrations/$integID/content
Step 4 - Subscribe to Blocklists
The integration endpoint will serve the deduplicated blocklists it's subscribed to. After creation, a subscription pop-up appears automatically. You can also access it later via the Add Blocklist button.
Select one or more blocklists available for your plan, then click Confirm Subscription. The blocklist name(s) will appear in the integration tile once subscribed.
Configure Palo Alto
Create an External Dynamic List

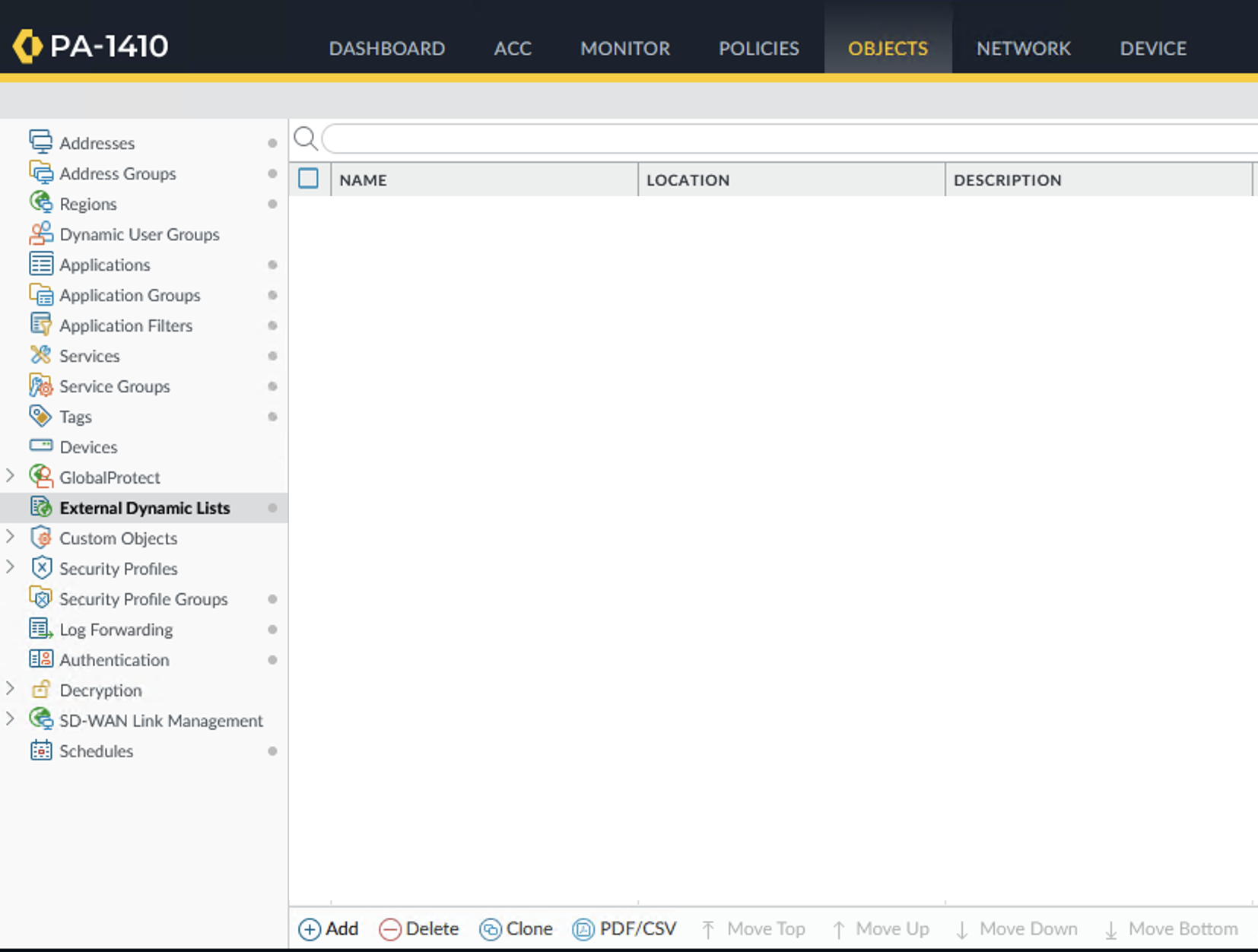

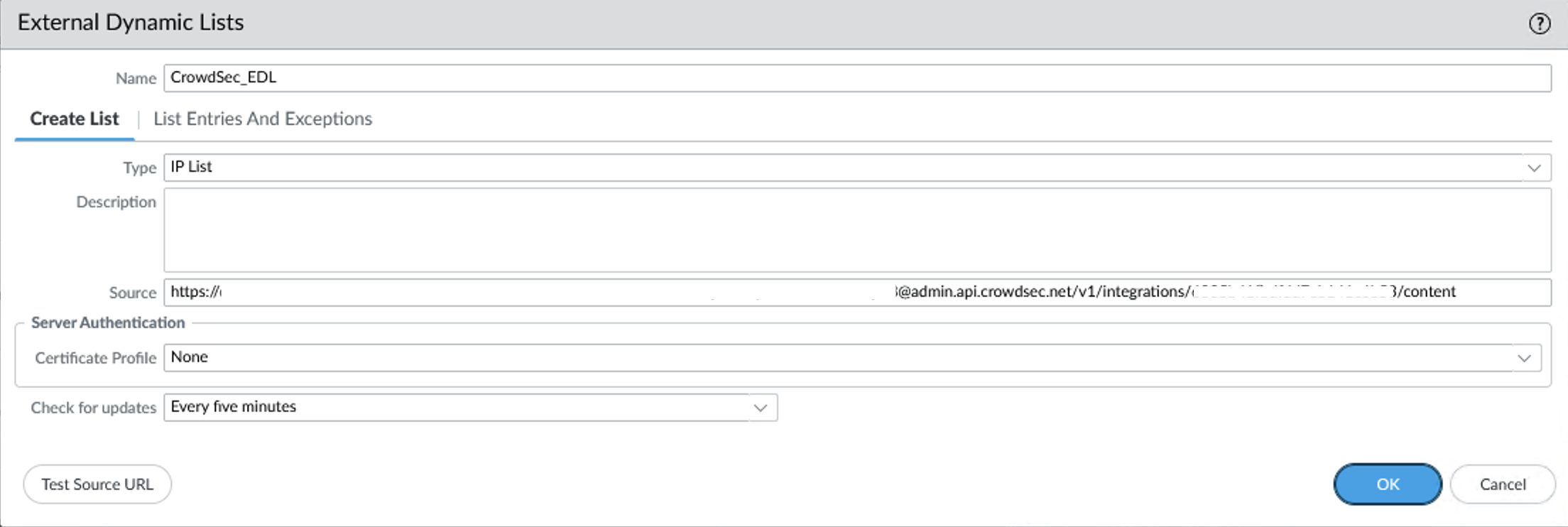

Go to Objects > External Dynamic Lists > Add.
Embed the credentials in the URL using Basic Auth:
https://<username>:<password>@admin.api.crowdsec.net/v1/integrations/<integration_id>/content
Set your desired update frequency.
Create a security policy

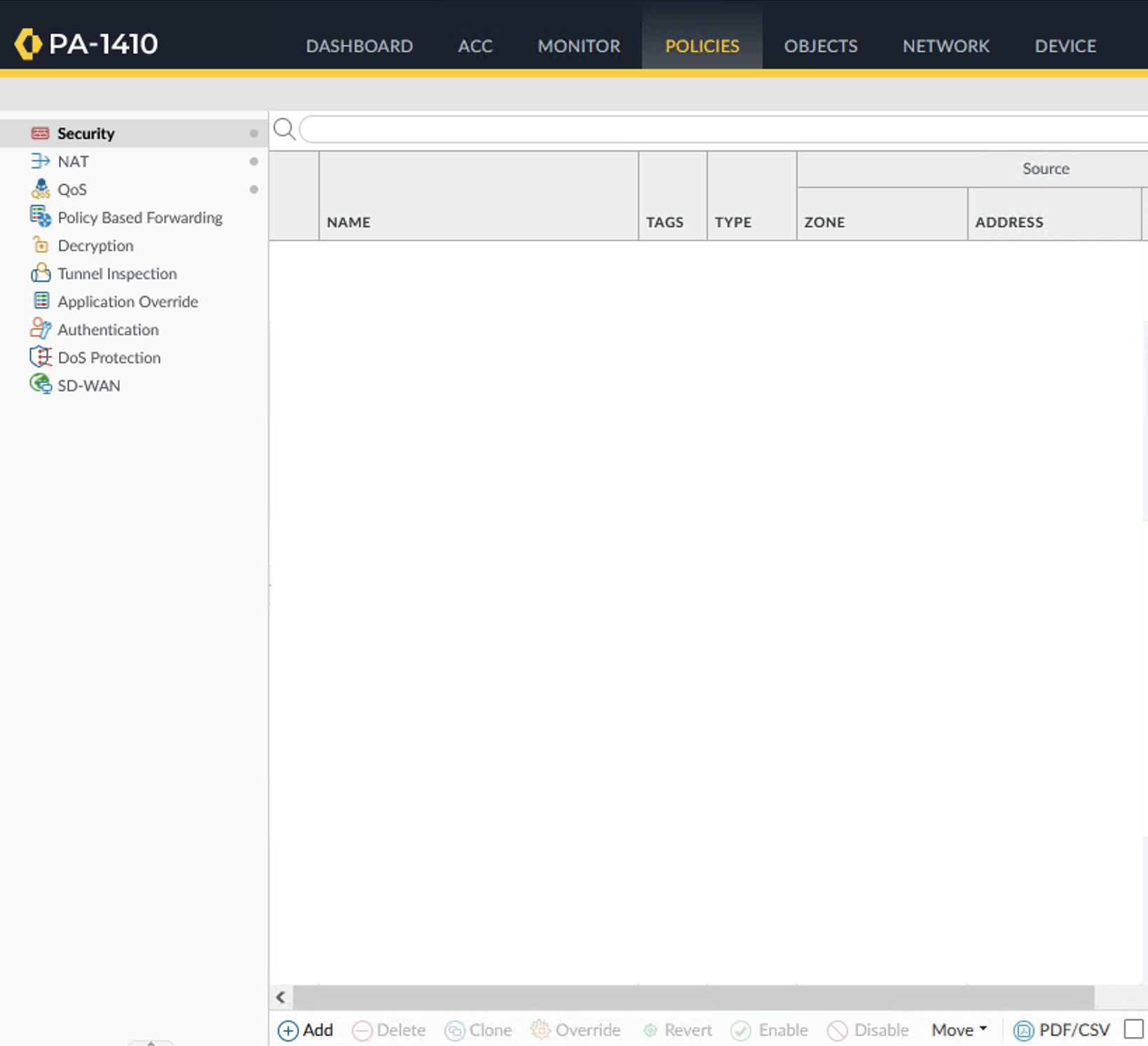

Go to Policies > Security > Add.

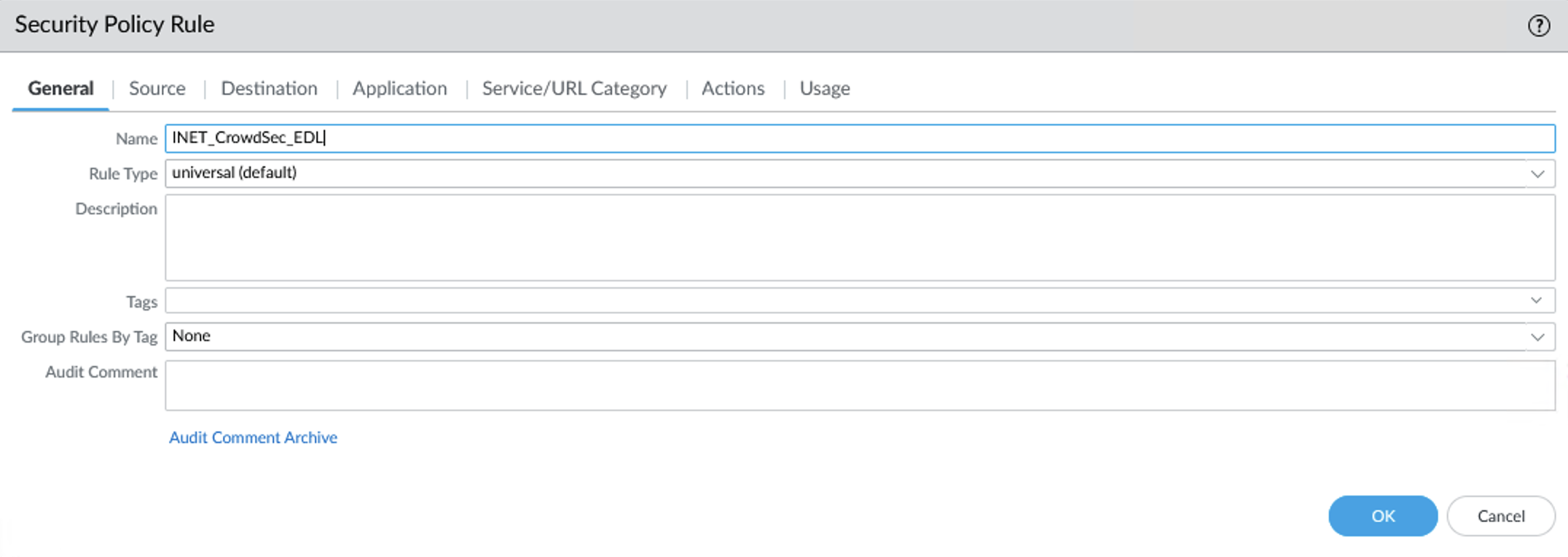

In the General tab, add the policy name and description.

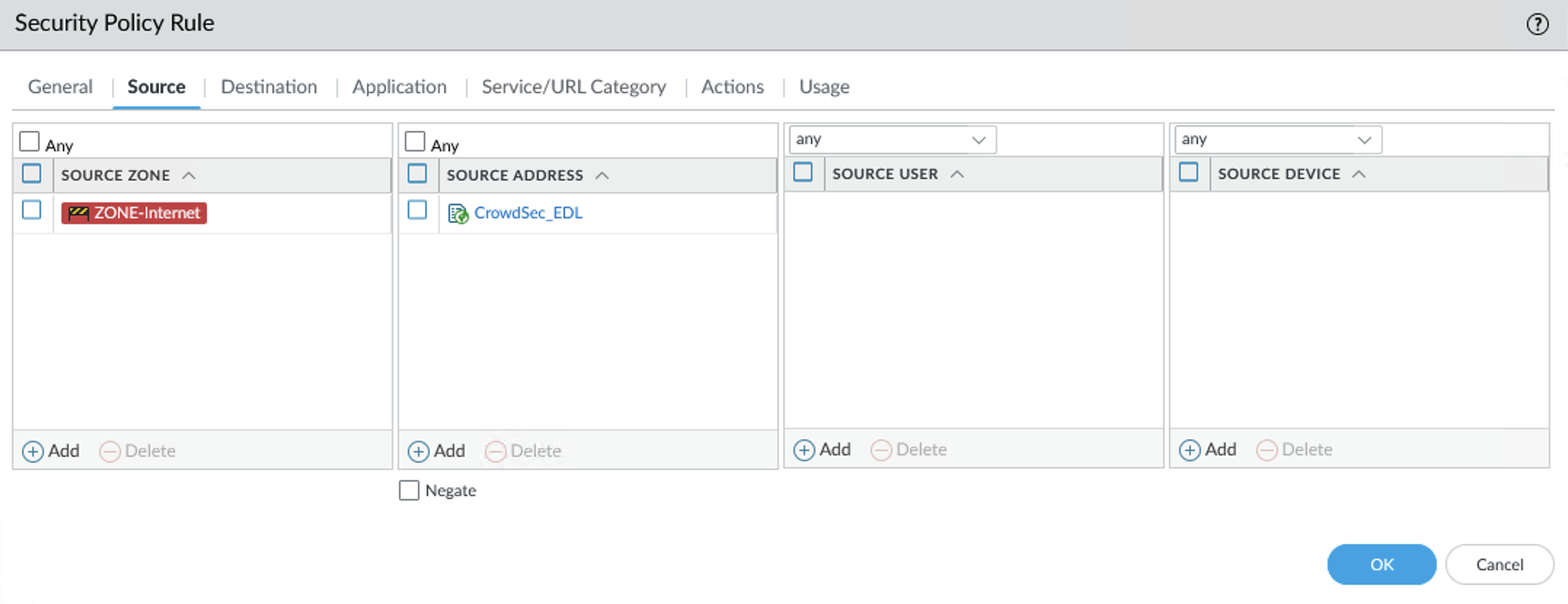

In the Source tab, select your source zone and the External Dynamic List as the source address.

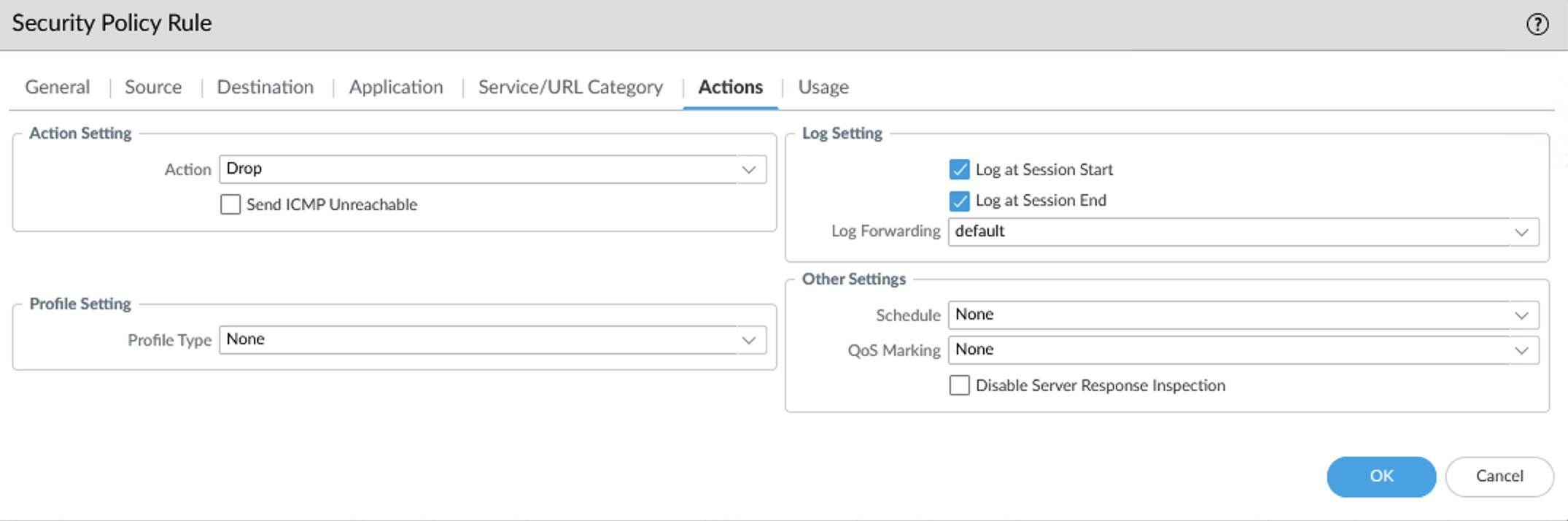

In the Actions tab, select Drop and enable logging (recommended).

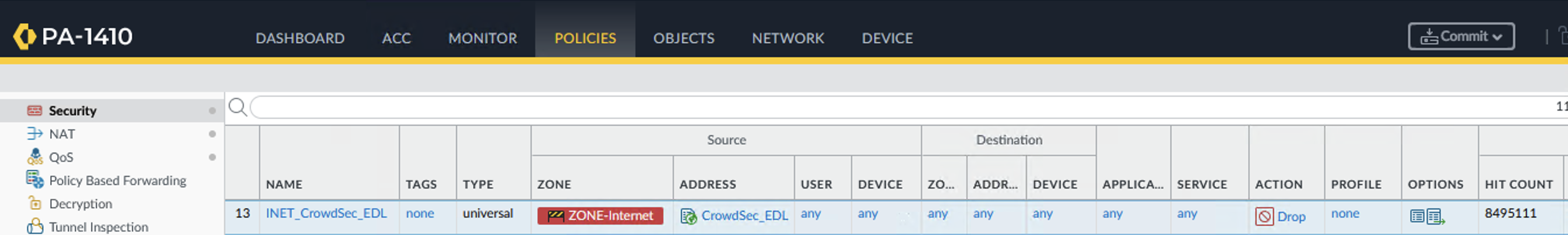

Click Commit to apply the configuration.
Manage integration size limits with pagination
If you want to learn how to manage integration size limits with pagination, please refer to the Managing integrations size limits with pagination section.
References
Next Steps
Subscribe to blocklists in the Blocklist Catalog to populate your integration.
